360 Degree Security Radar Detection Intrusion Alarm System with Camera Surveillance Radar Security & Protection Product
Επικοινωνήστε μαζί μου για δωρεάν δείγματα και κουπόνια.
ΤιAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Αν έχετε οποιοδήποτε πρόβλημα, παρέχουμε 24ωρη ηλεκτρονική βοήθεια.
xΛεπτομέρειες
| Εφαρμογή | Προστασία ασφαλείας | Χαρακτηριστικό | διαρκής |
|---|---|---|---|
| Τύπος | Ανιχνευτής σημάτων | κηφήνας | 1,2 χλμ |
| Κάλυψη αζιμουθίου | 90 μοίρες | Κάλυψη ανύψωσης | 40 βαθμός |
| Κάλυψη αζιμουθίου | 360 ° | Προσδιορισμός | Ζώνη C (5,5-5,8 GHz) |
| Επισημαίνω | 360 degree security radar system,intrusion alarm system with camera,phased array radar surveillance system |
||
Περιγραφή προϊόντων
Product Description

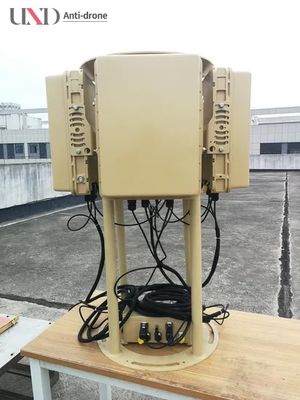

Air Surveillance Radar LAS-5C1K-3D / C band
LAS-5C1K-3D is a security surveillance radar, which is the same type of radar as LAS-1C1K which is a phased array radar with advanced technology and stable performance developed for the detection of low flying drones.
Features
-- High data rate and high positioning accuracy
-- Multi-Input Multi-Output (MIMO) system
-- All-weather adaptability
Airports, military bases, border areas and other key areas security surveillance
Specification
| Item | Specification |
| Working mode | Phased array + Pulse Doppler |
| Working frequency | C band (5.5-5.8GHz) |
| Detection range | 1.2km (DJI Phantom 3/4," Mavic", RCS≈0.01 square meter) |
| Minimum detection range | ≤100m |
| Azimuth coverage | 4-panel: 360°+ ( Height Detection Radar 3D) |
| Elevation coverage | 40° |
| Distance accuracy | ≤10m |
| Azimuth Accuracy | ≤1.0° |
| Target detection speed | 0.2m/s - 25m/s |
| Speed precision | ≤0.2m/s |
| Data rate | ≤1.5s |
| Peak Output | 4W/Panel |
| Net weight | ≤70kg |
| Power supply | AC220V/250W |
| Interface | Ethernet (UDP protocol) |
| Dimension | 725mm X 725mm X 735 mm (2D) 725mm X 725mm X 1400 mm (3D) |
| Working temperature | -40 ºC ~ +60 ºC |
| Working Environment | Rain-proof; Dust Prevention; Sand-prevention; Moisture-proof, Mould-proof and Salt-proof |
